| Application | Multi-criteria detector with a built-in wireless transmitter capable of detecting smoke, heat, rate-of-rise and low temperature |
|---|---|
| Sound Level | 85 dBA at 10 ft (3 m) |
| Alarm Current | 35 mA maximum |
| Battery Replaceable | Yes |
| Wireless Interconnectivity | Yes |
| Battery Size | 3V|CR123A |
| Battery Type | Lithium |
| Alert Type | Sounder |
| Battery Life | 5 years (typical use) |
| Number of Batteries | 2 |
| Color | White |
| Compatible With | Any 5800 enabled control system |
| Detection Principle | Thermal|Photoelectric |
| Detection Level | Fixed Temp Heat Detection: 135 °F (57 °C)|Rate-of-Rise Detection: > 104 °F @ 15 °F/min (40 °C @ 8.33 °C/min)|Low Temperature Alert: 41 °F (5 °C) |
| Mounting Location | Ceiling|Maximum Spacing 50 ft x 50 ft (15 m x 15 m) |
| Radio Frequency | 345 MHz |
| Standby Current | 10 μA max |
| Ambient Operating Temperature (Min) | 40 °F|4 °C |
| Ambient Operating Temperature (Max) | 100 °F|38 °C |
| Operating Relative Humidity (Max) | 95% RH, non-condensing |
| Installed Weight | 5.8 oz without batteries|164 g) without batteries |
| Overall Diameter | 4.74 in|120 mm |
| Product Depth | 2.31 in|59 mm |
| Approvals and Standards | FCC/IC|Conforms to UL 268 (7th edition)|Certified to ULC S529|CSFM|Units should be installed according to NFPA 72 |
| Hazmat Information | LITHIUM METAL BATTERIES in compliance with Section II of PI969 |
The 5800SMOKEV meets UL 268 7th Edition requirements, which provides early detection, while also reducing nuisance alarms from everyday cooking. It has improved detection of smoke from common synthetic materials found in many modern home furnishings. This comprehensive detector is particularly ideal for hard-to-wire locations or where hazardous materials exist, and features a small, sleek design for locations where aesthetics are of utmost importance.
- Meets the UL 268 7th edition standard
- Built‑in sounder provides clear, audible annunciation during potential incidents and low battery conditions
- Nuisance alarms are minimized through the use of smoothing algorithms and drift compensation

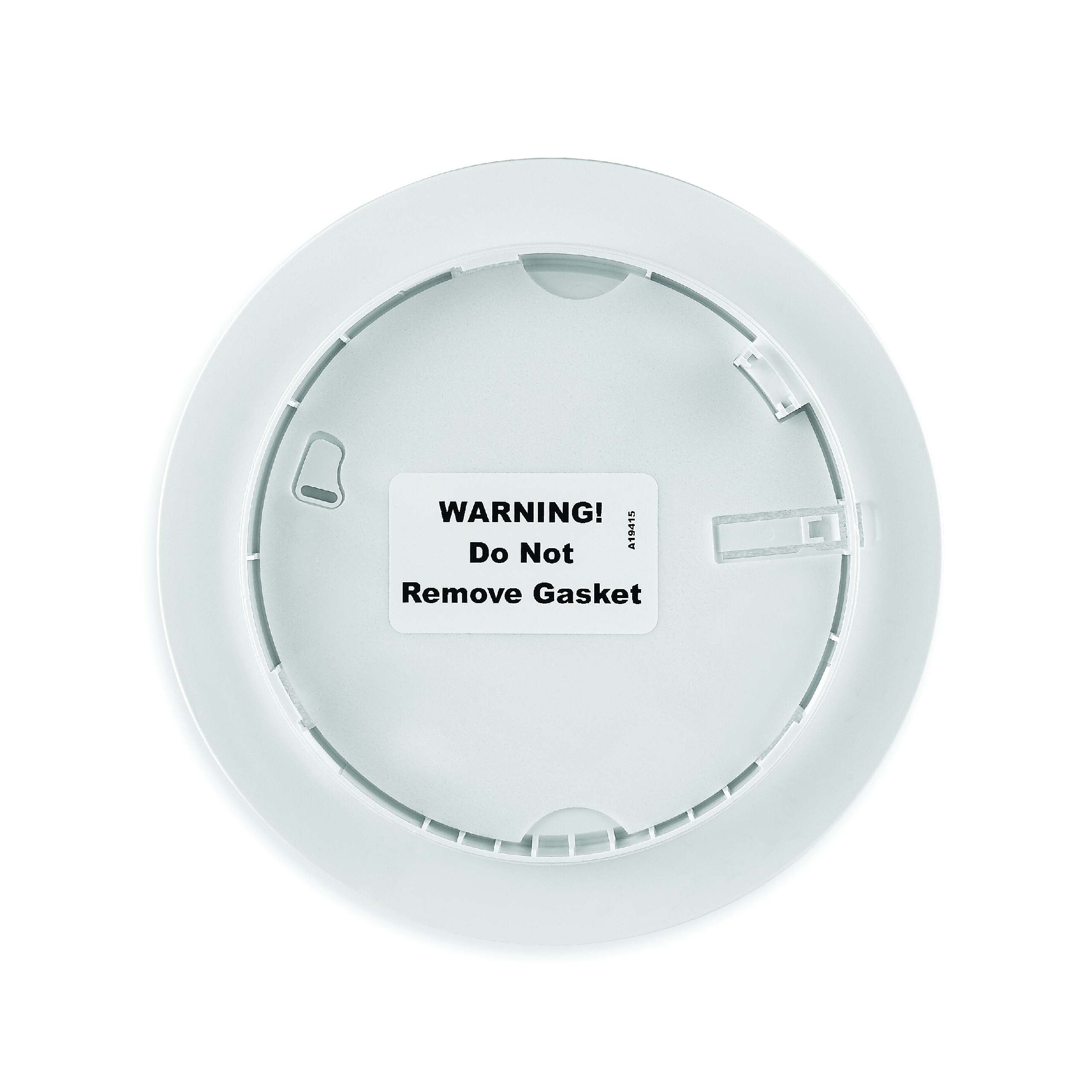

- Easy-to-install with sturdy, versatile mounting base and quick battery pull tabs
- Highly visible LEDs indicate power, sensor trouble, alarm and low battery status
- Monitored smoke chamber alerts when maintenance is needed
- Easily accessible test button to check unit functionality
